A cheap engine stand for a chevy small block
Posted byNotice: the_author was called with an argument that is deprecated since version 2.1.0 with no alternative available. in /home2/c235178/classiccarauto.com/wordpress2/wp-includes/functions.php on line 4666
Carl King - 06/06/07 at 07:06 pm
After yanking the engine out of the truck, I had to create a stand so I could put the engine in the back of the truck. I had to get the engine out of the garage so I have room to park the 68 VW.
The stand is made out of 4×4 and 3/4″ boards. I cut the 4×4 to 9″ in length and then trimmed a corner off of each one at one end. This is the end that will fasten into the motor mount bracket. I used a 24″ piece of 2×4 as the base.

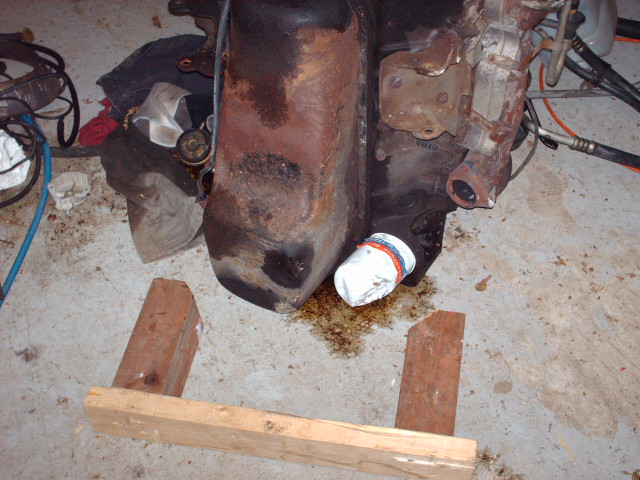

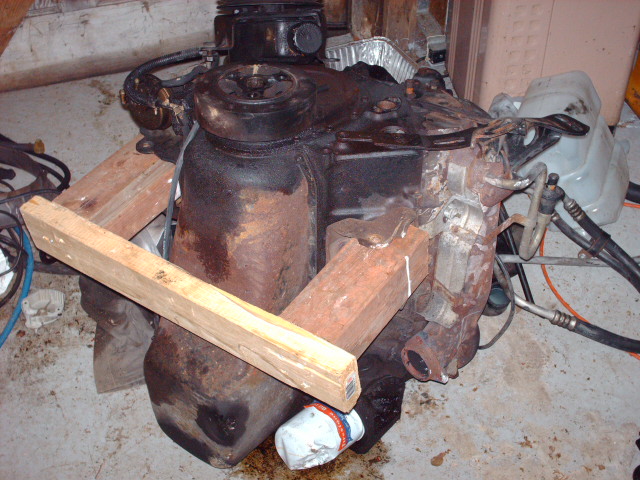

I used 4″ deck screws to fasten the 4×4 to the 2×4 at the ends, creating a “U” shape. I fastened a 3/4″ board across the bottom and the ends, then filled it full of drywall screws.

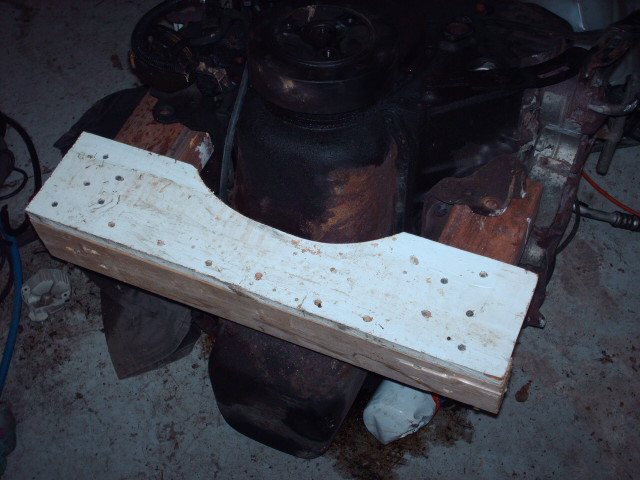

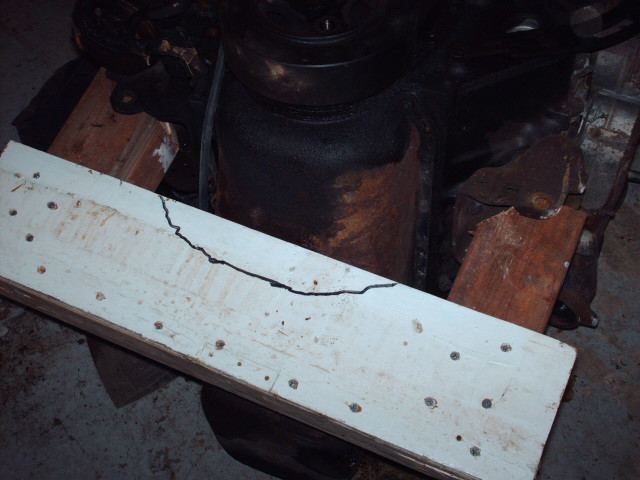

I estimated the arc I would need to cut out of the 3/4″ cross piece, drew it on with marker and cut it out with the sawzall. Once I got it to fit comfortably I drilled the holes using my drill press to be sure they were straight. Since the motor mount bracket has holes on either side, I didn’t want a crooked hole.

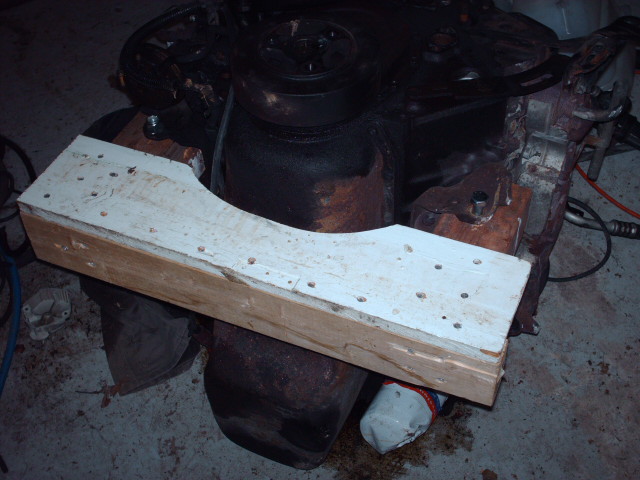

A couple of 7/16″ x 5 1/2″ bolts held the engine stand in place and it is now strong enough the stand the motor on. I’m not so sure I am going to put it in the back of the truck right away. I can create a lot of how-to chevy engine articles using this engine sitting on the garage floor. I might leave it there for a little while, so you can look forward to more how-to’s.
